Hydraulic Light Tower
RPLT-3700 & RPLT-3800 Hybrid Hydraulic Light Towers
The RPLT-3700 and RPLT-3800 are advanced hybrid hydraulic light towers engineered for reliable, high-performance illumination in demanding environments. Powered by a proven Kubota diesel engine with hybrid battery support, they deliver efficient, low-noise operation and long runtime. Featuring a hydraulic mast, powerful LED lamps, robust enclosure, and easy transport design, these light towers are ideal for construction sites, mining, events, and emergency applications where durability, efficiency, and consistent lighting are essential.

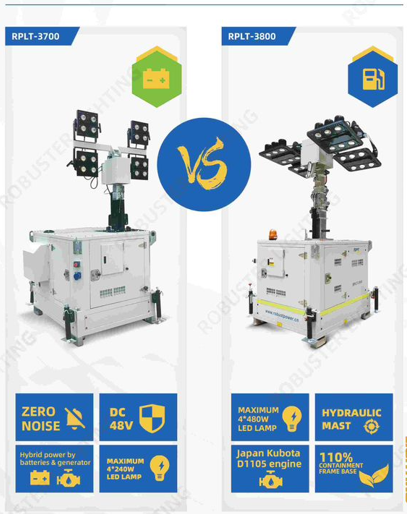

RPLT-3700 VS RPLT-3800 – SPECIFICATIONS
| Specification | RPLT-3700 | RPLT-3800 |
|---|---|---|
| Rated Power | 5 kW | 7 / 8 kW |
| Voltage | 48V DC | AC 110V / 120V / 220V / 230V / 240V |
| Operating Temperature | -20°C ~ +50°C | -20°C ~ +50°C |
| Control Panel | Smart Gen ALC704 | Smart Gen ALC704 |
| Engine Model | Kubota D1105-BG Diesel | Kubota D1105-BG Diesel |
| Speed | 1500 / 1800 RPM | 1500 / 1800 RPM |
| Cylinders | 3 | 3 |
| Cooling | Water Cooled | Water Cooled |
| Fuel Consumption | 0.8 L/hr | 1.05 L/hr |
| Fuel Tank | 100 L | 100 L |
| Autonomy (Operating Time) | 125 Hours | 95 Hours |
| Mast Type | Hydraulic Mast | Hydraulic Mast |
| Max Height | 8 m | 8 m |
| Rotation | 350° | 350° |
| Lamp Power | 4 × 160W / 4 × 240W | 4 × 350W / 4 × 480W |
| Lumens | 89,600 – 134,400 | 196,000 – 268,800 |
| Dimensions (L×W×H) | 1500 × 900 × 2400 mm | 1500 × 900 × 2400 mm |
| Container Loading (20GP / 40HQ) | 4 / 8 Sets | 4 / 8 Sets |
